Oxidean Marine Seaking 180amp RC Boat ESC
Description

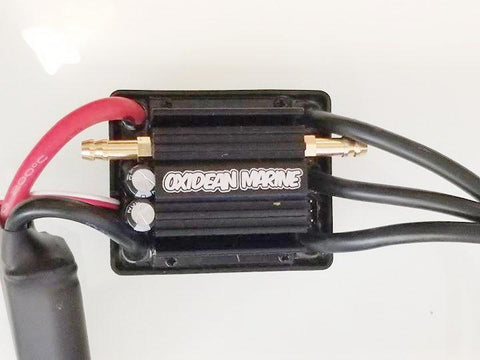

Oxidean Marine 180A ESC
No Worry, Waterproofing
Want to drive during tough weather like pro racers? With our brushless series, you no longer need a traditional waterproofing box. Our ESC is completely waterproofed so you save not only compartment space, but also keep vehicle weight low.
External programming port
The external programming port allows easy connection to a HOBBYWING Program Card when setting up the ESC anytime, anywhere. The portable Digital LED Program Card is especially convenient for outdoor use.
Latest Technology
Patented Copper Heat Conduction technology and a high-efficiency water cooling system easily dissipate the heat produced under high load operation.
Multiple protections
Low-voltage cutoff protection, thermal protection and throttle signal loss protection all make the ESC more reliable.
Specs |
|
| Cont./Peak Current | 180A/1080A |
| Boat Applicable | Boat length < 130cm |
| Input / | 2-6S Lipo |
| BEC Type / BEC Output | Switch Mode / 6V 5A |
| External Programming Port | Available |
| Water Cooling Pipe | (Inside / Outside): Ф3.0 / 5.4mm |
| Input wire | Red-10AWG-200mm*1 Black-10AWG-200mm*1 |
| Output wire | Black-10AWG-150mm*3 |
| Size / Weight | 72X48X36.6mm (Include the Water Cooling Pipe) / 207g |
- Excellent waterproof design (rates as IP 67) allows this ESC to work in water without any extra precautions.
- High quality components have very strong over-current withstanding capabilities.
- Patented Copper Heat Conduction technology and high-efficiency water cooling system can easily dissipate the heat produced in operation under high load.
- The special firmware designed for RC boats can make the acceleration punchier and the sailing more stable.
- The external Programming Port can connect to the LED Program Box for easily setting the parameters of the ESC.
- Multiple protections like low-voltage cutoff protection, thermal protection and throttle signal loss protection make the ESC more reliable.
SKU: OXM-50006 (Old SKU: OXIAC043)
